XDS
SKU: 9990217151
X-LAB GT8 Gravel Bike The GT8 is X-LAB’s first gravel platform, built for riders who see every road as an invitation to explore. Designed around stability, control, and long-distance comfort, the GT8 moves confidently...
AED 12,899.00
AED 12,899.00
Colour: Afterburner Black
Size: S
X-LAB GT8 Gravel Bike | Afterburner Black

X-LAB GT8 Gravel Bike | Afterburner Black

AED 12,899.00
X-LAB GT8 Gravel Bike | Afterburner Black
X-LAB GT8 Gravel Bike | Afterburner Black
X-LAB GT8 Gravel Bike | Afterburner Black
X-LAB GT8 Gravel Bike | Afterburner Black
X-LAB GT8 Gravel Bike | Afterburner Black
X-LAB GT8 Gravel Bike | Afterburner Black
X-LAB GT8 Gravel Bike | Afterburner Black

X-LAB GT8 Gravel Bike | Afterburner Black

AED 12,899.00
Colour: Afterburner Black
Size: S
GENERAL INFO
GENERAL INFO
x

X-LAB GT8 Gravel Bike

The GT8 is X-LAB’s first gravel platform, built for riders who see every road as an invitation to explore.

Designed around stability, control, and long-distance comfort, the GT8 moves confidently from smooth pavement to gravel roads, city streets, and open trails.

Its durable carbon construction combines confident handling with the versatility needed for long rides and mixed terrain—whether you’re heading out for a quick gravel session or exploring somewhere new.

Wherever the road disappears, the GT8 keeps going.

Key Features

Branta C45 Gravel carbon wheelset

Shimano GRX 717 Di2 groupset

Branta alloy crankset with integrated power meter and Apple Find My anti-theft technology

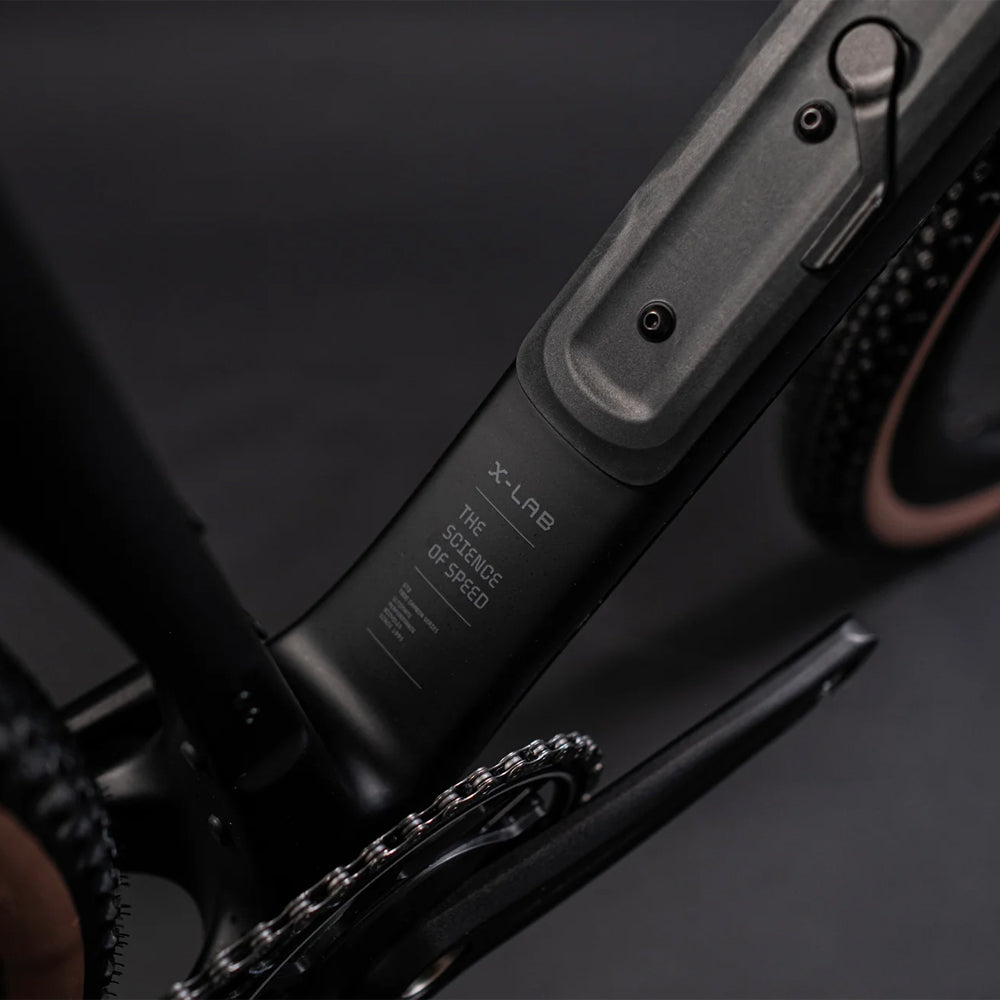

In-frame storage and accessory mounting points on frame and fork

TECHNICAL SPECS
TECHNICAL SPECS
x

Frame XDS Carbon Frame, Toray T-800, UDH Compatible
Fork XDS Carbon Fork, Toray T-800, 100x12mm Thru-Axle
Stem Branta Carbon Stem
Handlebar Branta Gravel Carbon Handlebar
Seatpost XDS Carbon 27.2mm
Rear Derailleur Shimano GRX RD-RX717 Di2
Shifters Shimano GRX ST-RX717 Di2
Brakes Shimano GRX BR-RX410
Cassette Shimano CS-M6200-12, 10-51T
Crankset Branta Alloy Power Meter Crankset, 40T, Narrow-wide Teeth,
24mm Steel Spindle, Apple Find My Anti-Theft Technology
Bottom Bracket T47 24mm
Rotors Shimano SM-RT70, Front: 160mm / Rear: 160mm
Chain Shimano CN-M6100
Wheelset Branta C45 Gravel Carbon Wheelset, Stainless Steel Spokes
Tires Continental Terra Trail 700x45C
Max Tire Clearance: 55C
Saddle Fizik Terra Argo X7
Weight 8.78 kg / 19.31 lbs (Size M)
Size Options XS / S / M / L / XL / XXL
GEOMETRY
GEOMETRY
x
Basic Geometry XS S M L XL XXL
A — Seat Tube Length 435mm 447mm 471mm 491mm 532mm 577mm
B — Top Tube Length 506mm 525mm 547mm 566mm 585mm 605mm
C — Head Tube Length 80mm 100mm 120mm 140mm 165mm 190mm
D — Seat Tube Angle 76° 75° 74° 74° 73° 73°
E — Head Tube Angle 70° 70° 71° 71° 71° 71°
F — Chainstay 435mm 435mm 435mm 435mm 435mm 435mm
G — Wheelbase 1020mm 1032mm 1031mm 1046mm 1061mm 1078mm
H — Bottom Bracket Drop 80mm 80mm 80mm 80mm 80mm 80mm
I — Stack 519mm 540mm 565mm 584mm 607mm 631mm
J — Reach 370mm 379mm 384mm 392mm 399mm 408mm
K — Front Center 598mm 610mm 609mm 624mm 638mm 655mm
O — Stand Over 715mm 730mm 755mm 773mm 807mm 838mm


Component Geometry XS S M L XL XXL
Fork Rake / Offset 55mm 55mm 50mm 50mm 50mm 50mm
Trail 75mm 72mm 70mm 70mm 70mm 70mm
Handlebar 370/430mm 370/430mm 390/450mm 390/450mm 410/470mm 410/470mm
Stem 70mm 70mm 80mm 90mm 100mm 100mm
Crankset 165mm 165mm 170mm 170mm 172.5mm 172.5mm
Seat Post 300mm 300mm 350mm 350mm 350mm 350mm
