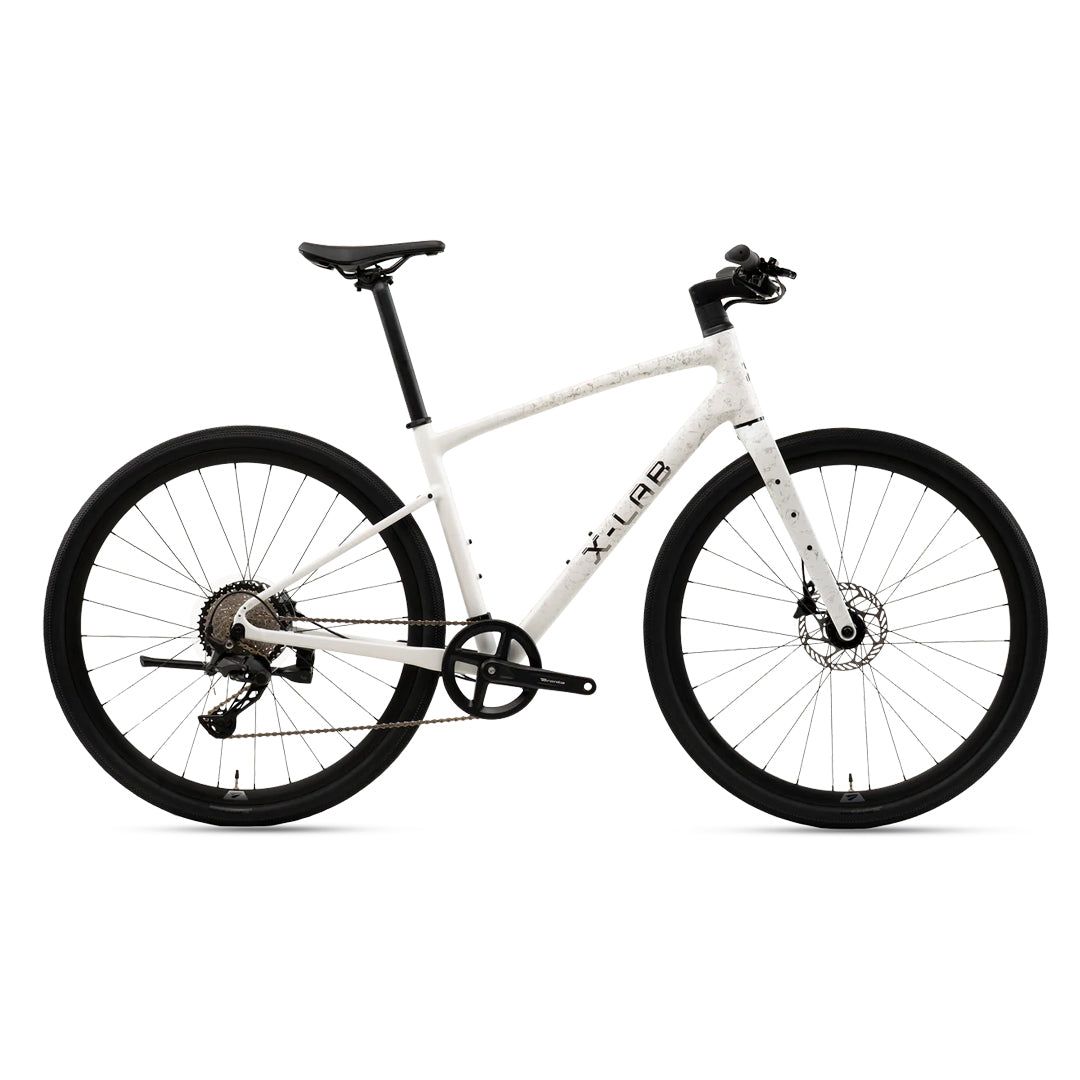

The SP3 in Frostbite is built for riders who value simplicity, comfort, and everyday reliability. Its durable aluminum frame and relaxed riding position provide smooth handling and stability, making every ride feel effortless—whether through city streets or neighborhood paths. Clean, fresh, and easy to ride, the SP3 Frostbite is perfect for those who want a no-fuss cycling experience with a modern touch.
KEY FEATURES:
Integrated cockpit with clean cable routing
XDS X6 Alloy frame + Carbon fork
Quad Lock phone mount
Shimano CUES drivetrain + hydraulic disc brakes
| Frame | XDS X6 Alloy Frame |
|---|---|
| Fork | XDS Carbon Fork, 100x12mm Thru-axle |
| Stem | Branta Alloy Stem, 90mm, 0° Rise |
| Handlebar | Branta X6 Alloy Handlebar, 25mm Rise, 9° Back Sweep |
| Seatpost | XDS Alloy 31.6mm Seatpost, 400mm Length, 12mm Setback |
| Rear Derailleur | Shimano Cues RD-U6020, 10-Speed |
| Shifter | Shimano Cues SL-U6000-10R |
| Brakes | Branta C515 Hydraulic Disc Brake, 3-Finger Lever, 2-Piston Caliper |
| Cassette | CS-M6010C, 10-Speed, 11-40T |
| Crankset |
Branta Alloy Square Taper Crankset, 170mm, 40T Narrow-wide Teeth |
| Bottom Bracket | BSA Square Taper |
| Rotors | Branta AR14, Front: 160mm / Rear: 160mm |
| Chain | TEC GT-Glide |
| Wheelset | Branta A27 Regular, Alloy Rim |
| Tires | Branta R240, 700x40C, 30TPI |
| Saddle | Branta SRX+ |
| Phone Holder | Quad Lock Mount |
| Weight | 10.71 kg / 23.61 lbs (Size L) |
| Size Options | S / M / L / XL |

| title | S | M | L | XL |
|---|---|---|---|---|
| A — Seat Tube Length | 405mm | 457mm | 508mm | 559mm |
| B — Top Tube Length | 546mm | 574mm | 602mm | 622mm |
| C — Head Tube Length | 140mm | 165mm | 190mm | 215mm |
| D — Seat Tube Angle | 75° | 74° | 74° | 73° |
| E — Head Tube Angle | 70° | 71° | 72° | 73° |
| F — Chainstay | 445mm | 445mm | 445mm | 445mm |
| G — Wheelbase | 1054mm | 1072mm | 1089mm | 1092mm |
| H — Bottom Bracket Drop | 72mm | 72mm | 72mm |
| title | S | M | L | XL |
|---|---|---|---|---|
| Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm |
| Trail | 79mm | 75mm | 71mm | 64mm |
| Handlebar | 640mm | 640mm | 660mm | 660mm |
| Stem | 90mm | 90mm | 90mm | 90mm |
