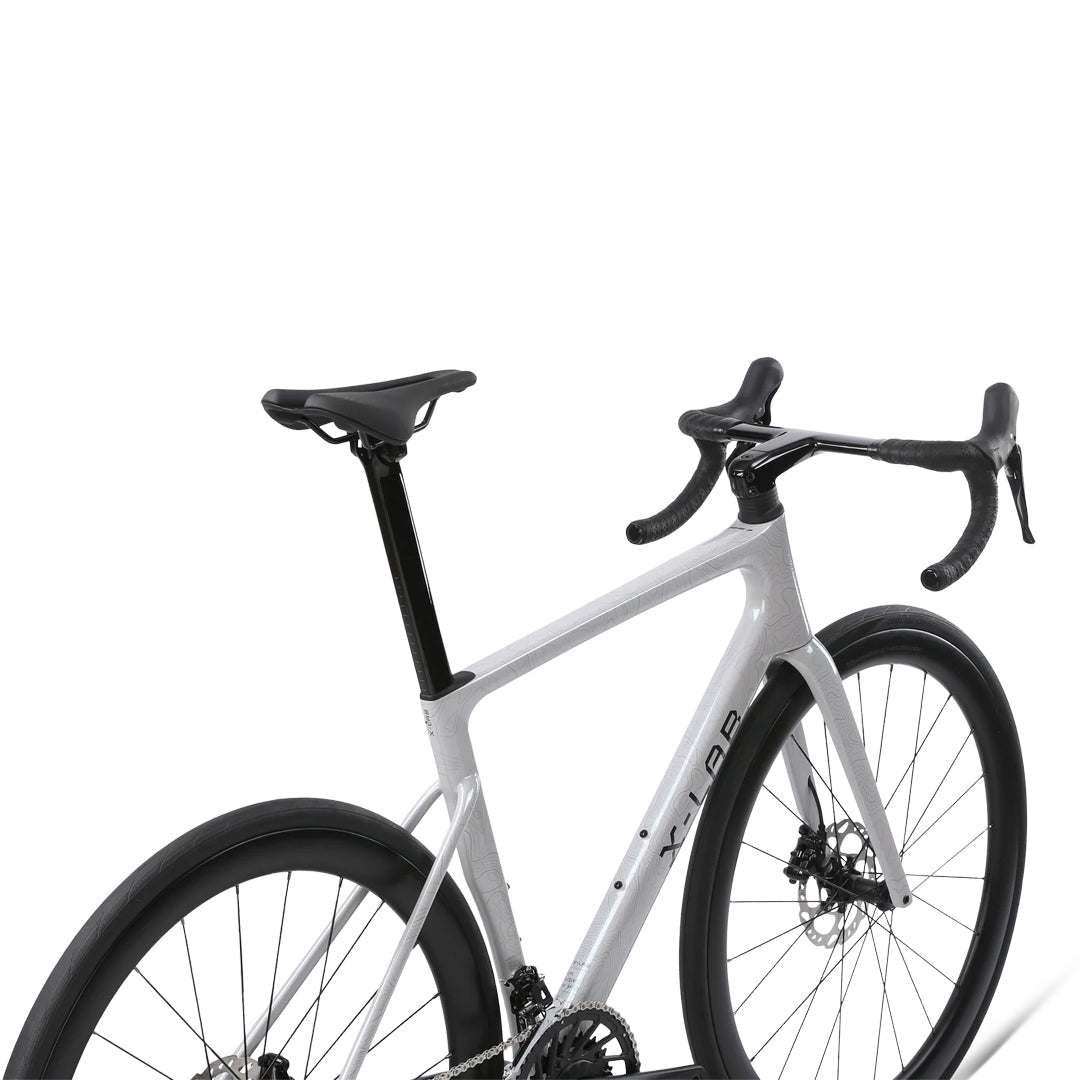

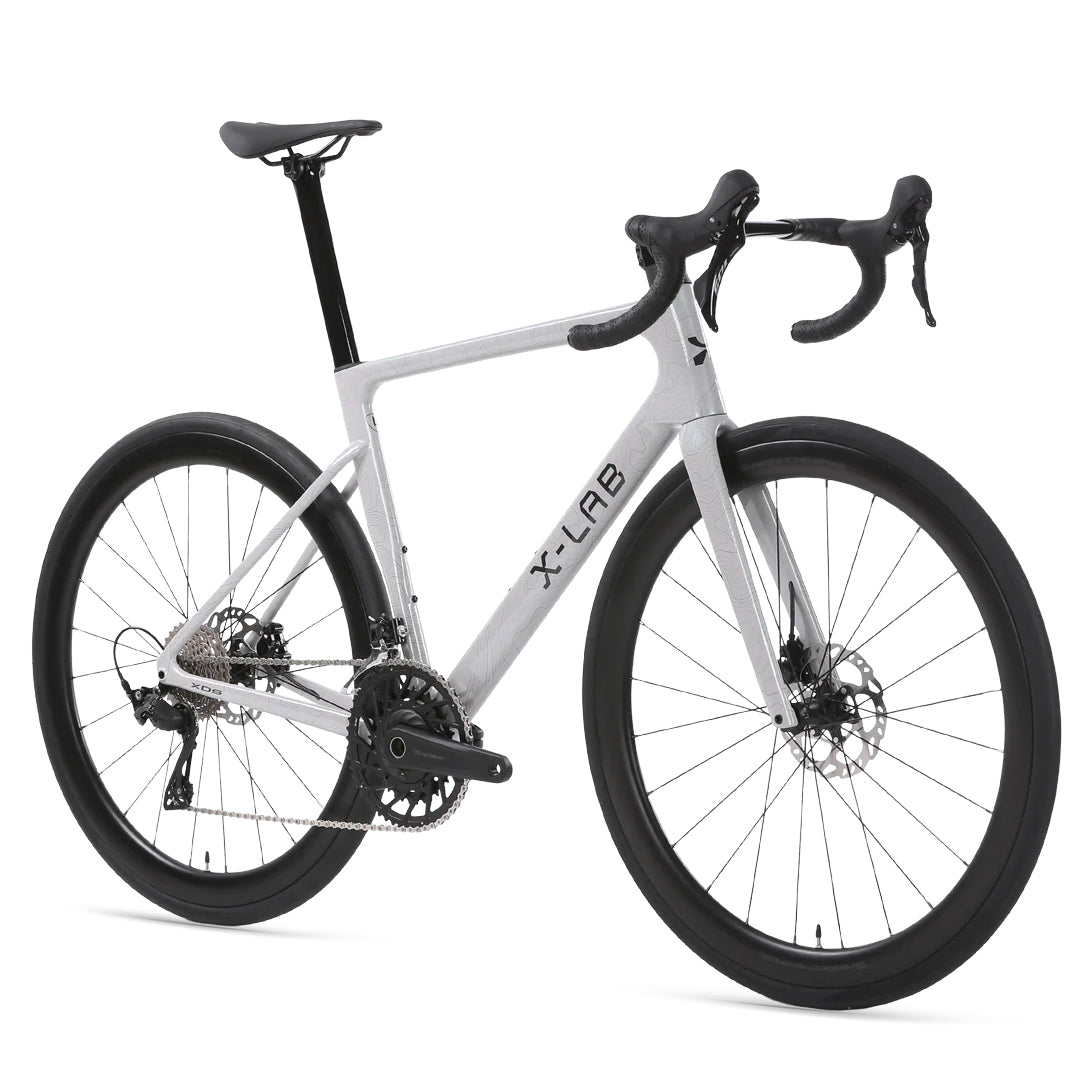

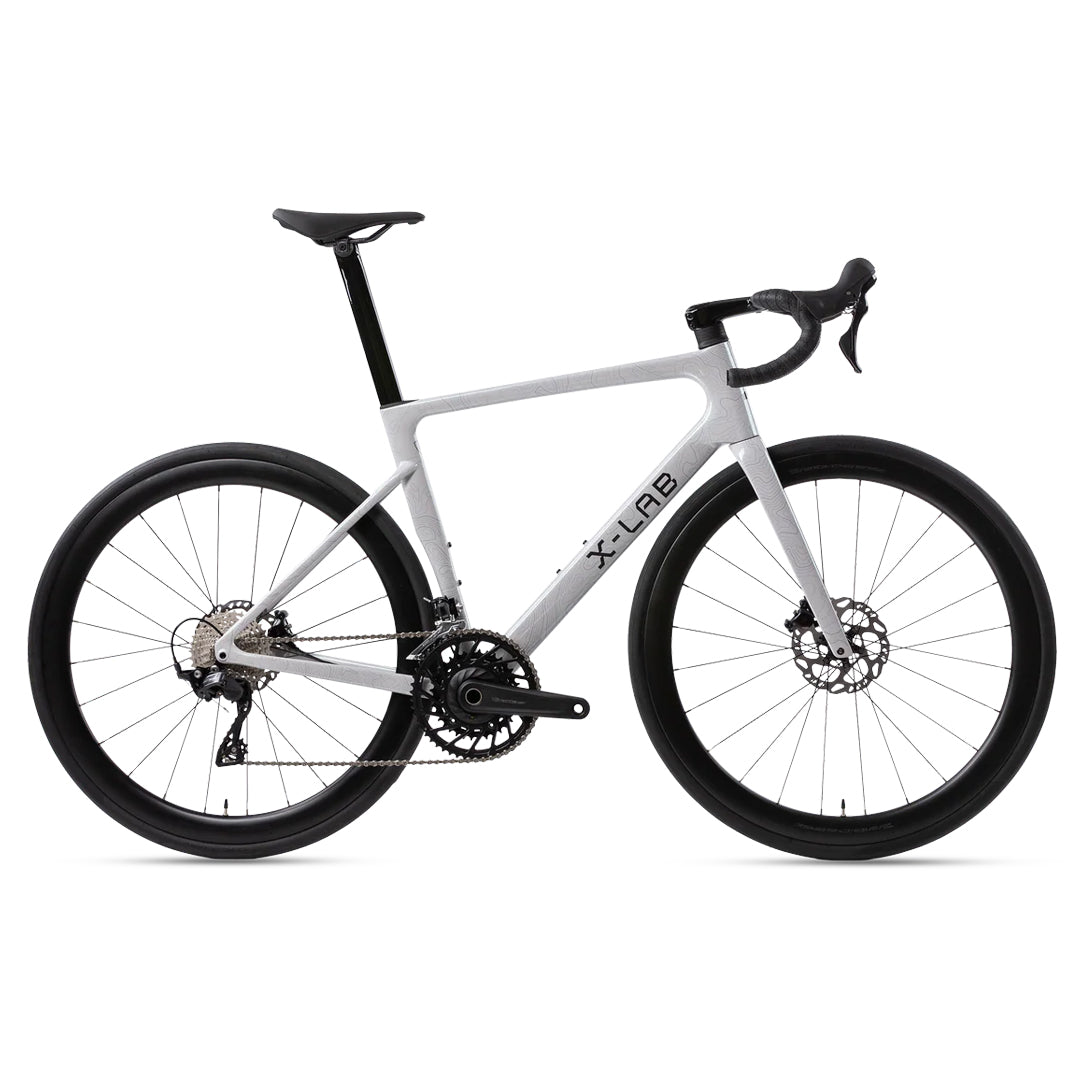

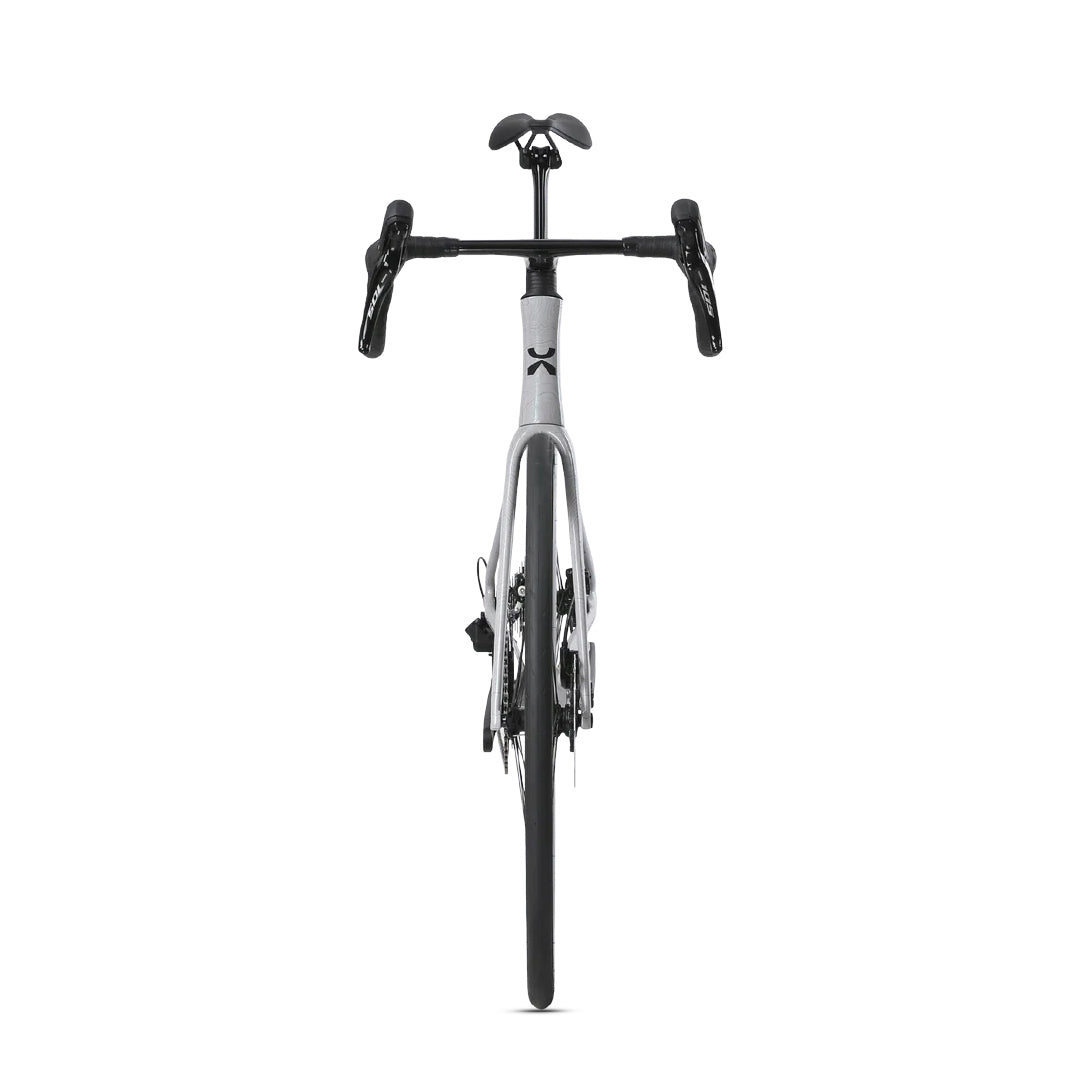

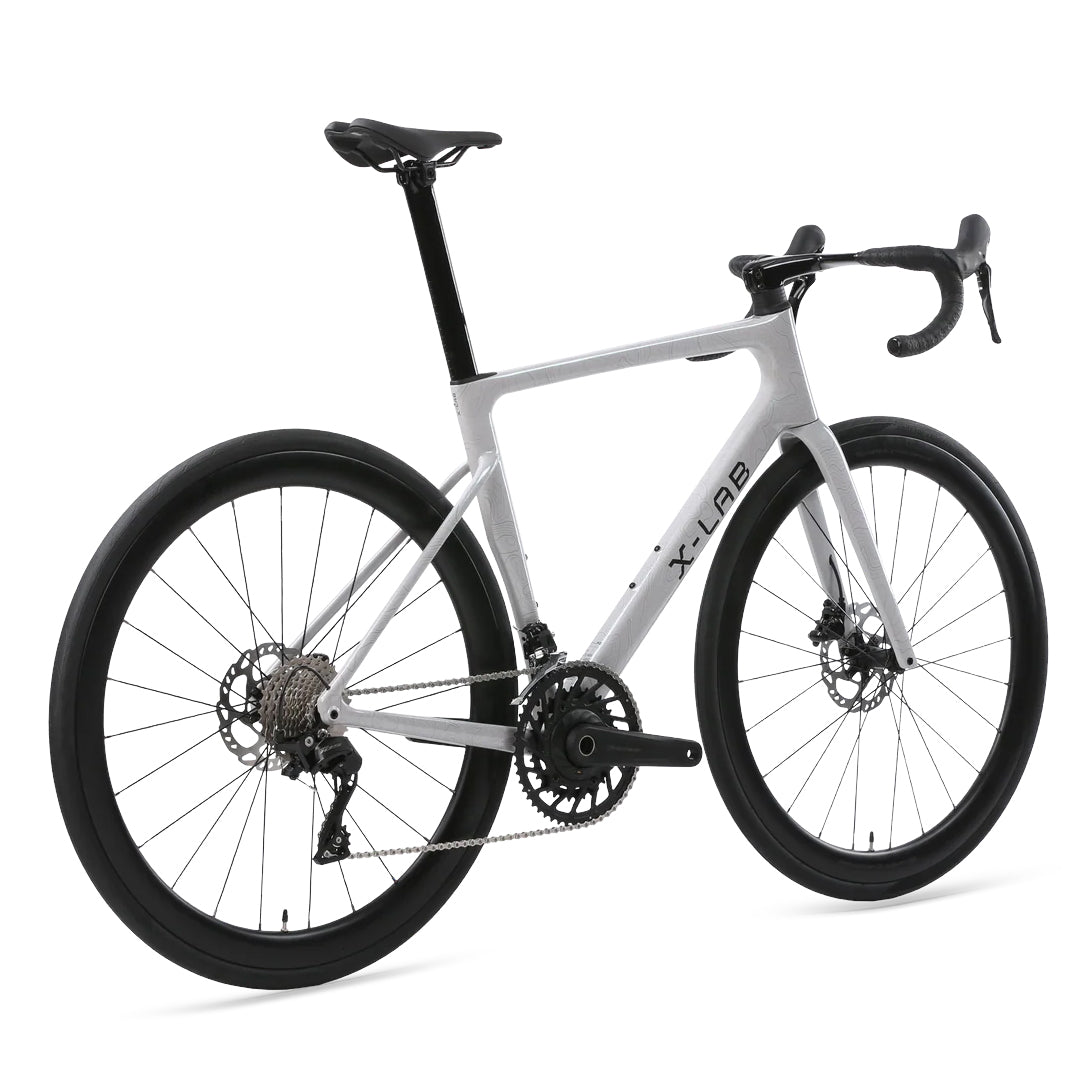

X-LAB RS7 | Shimano 105 | Angel Wing White
X-LAB RS7 | Shimano 105 | Angel Wing White
X-LAB RS7 | Shimano 105 | Angel Wing White
X-LAB RS7 | Shimano 105 | Angel Wing White
X-LAB RS7 | Shimano 105 | Angel Wing White

X-LAB RS7 | Shimano 105 | Angel Wing White

XDS
SKU: 6939886203868
The RS7 is built to deliver a perfect blend of aerodynamic efficiency and all-day comfort. Its race-inspired geometry, paired with a refined carbon frame, provides quick acceleration and responsive handling, while maintaining the stability...
AED 9,199.00
AED 9,199.00
Colour: White
Size: XS
X-LAB RS7 | Shimano 105 | Angel Wing White

X-LAB RS7 | Shimano 105 | Angel Wing White

AED 9,199.00
X-LAB RS7 | Shimano 105 | Angel Wing White
X-LAB RS7 | Shimano 105 | Angel Wing White
X-LAB RS7 | Shimano 105 | Angel Wing White
X-LAB RS7 | Shimano 105 | Angel Wing White
X-LAB RS7 | Shimano 105 | Angel Wing White

X-LAB RS7 | Shimano 105 | Angel Wing White

AED 9,199.00
Colour: White
Size: XS
GENERAL INFO
GENERAL INFO
x

The RS7 is built to deliver a perfect blend of aerodynamic efficiency and all-day comfort. Its race-inspired geometry, paired with a refined carbon frame, provides quick acceleration and responsive handling, while maintaining the stability needed for longer rides. Whether you're pushing the pace on training days or cruising through daily commutes, the RS7 offers a dependable and versatile ride every time.

KEY FEATURES:

Branta C45 Base carbon wheelset

Shimano 105 groupset

Aero carbon seatpost

Full carbon frame and fork | Full bike 8.49 kg

TECHNICAL SPECS
TECHNICAL SPECS
x
FrameXDS Carbon Frame, Toray T-700
ForkXDS Carbon Fork, Toray T-700, 100x12mm Thru-axle
Handlebar / StemBranta Carbon Integrated
SeatpostXDS Carbon Seatpost, Aero Profile
Rear DerailleurShimano 105 RD-R7100
Front DerailleurShimano 105 FD-R7100
ShiftersShimano 105 ST-R7120
BrakesShimano 105 BR-R7170
CassetteCS-R9012, 12-Speed, 11-34T
Crankset Branta Alloy Power Meter Crankset, 52-36T
24mm Steel Spindle, Apple Find My Anti-Theft Technology
Bottom BracketBSA 24mm
RotorsShimano SM-RT70, Front: 160mm / Rear: 160mm
ChainSUMC SX12
WheelsetBranta C45 Base Carbon Wheelset, Stainless Steel Spokes
TiresBranta R332, 700x32C, 60TPI
SaddleBranta R302, Steel Rails
Weight8.49 kg / 18.67 lbs (Size L)
Size OptionsXS / S / M / L / XL / XXL
GEOMETRY
GEOMETRY
x
Basic geometry
title XS S M L XL XXL
A — Seat Tube Length 420mm 440mm 470mm 490mm 510mm 530mm
B — Top Tube Length 500mm 515mm 531mm 550mm 570mm 590mm
C — Head Tube Length 130mm 135mm 145mm 160mm 175mm 200mm
D — Seat Tube Angle 75° 75° 75° 74° 74° 74°
E — Head Tube Angle 70° 72° 73° 73° 73° 74°
F — Chainstay 410mm 410mm 410mm 410mm 410mm 410mm
G — Wheelbase 973mm 976mm 982mm 993mm 1006mm 1016mm



Component geometry
title XS S M L XL XXL
Fork Rake/Offset 55mm 55mm 45mm 45mm 45mm 45mm
Trail 65mm 58mm 62mm 60mm 58mm 52mm
Handlebar 360mm 360mm 380mm 380mm 400mm 400mm
Stem 90mm 100mm 110mm 110mm 120mm 120mm
Crankset 165mm 165mm 170mm 170mm 172.5mm 172.5mm
Seat Post 300mm 300mm 350mm 350mm 400mm 400mm
